Product Details







Product Information







​

​​



Model

PAX-BW151

Welding cap size(L x W x H)

110X90X9 mm

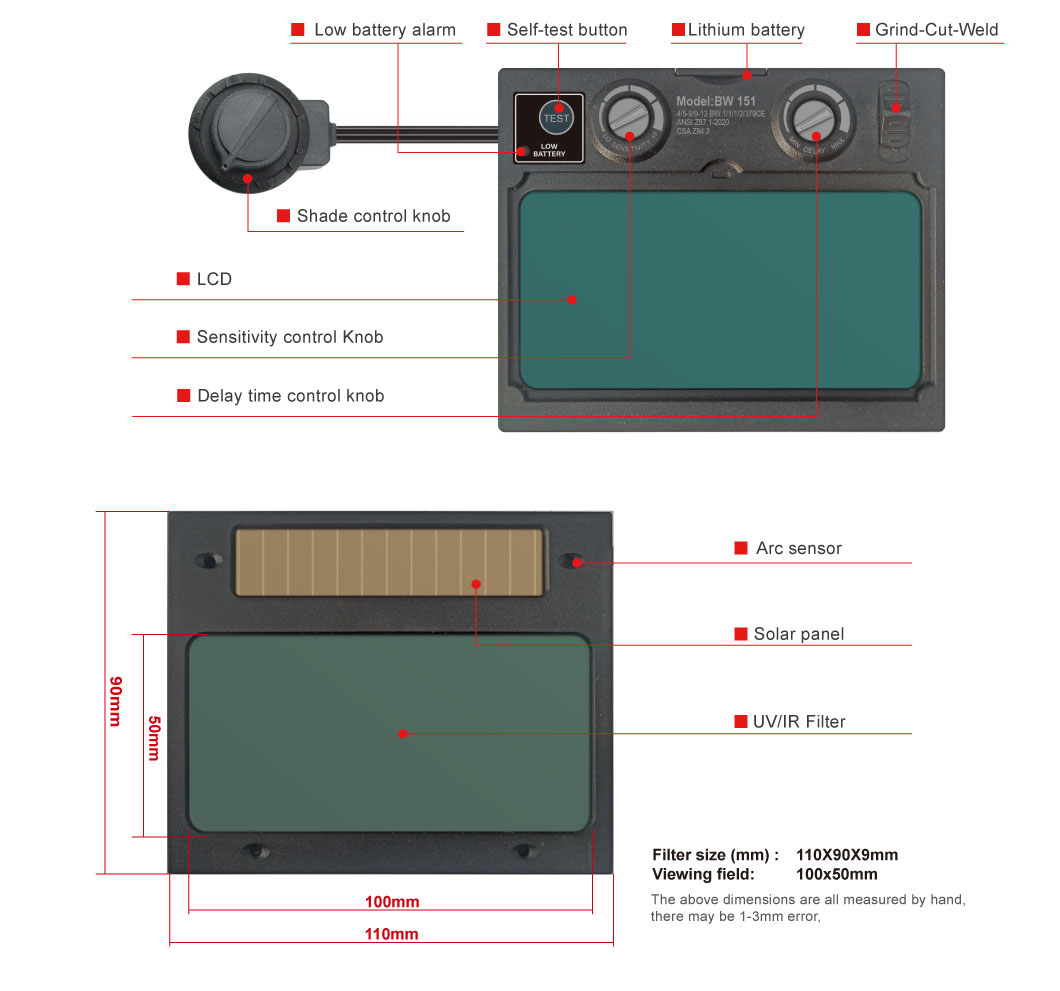

Filter size(L x W x H)

110X90X9 mm

Viewing field

100x50 mm

Optical Class

1/1/1/1

Light states

DIN 4

Dark states

DIN 5-9/9-13

Sensitivity Control

Variable adjusted by an internal knob

Switching Time

Light-dark:1/30,000sec

Delay Time

Dark-Light:0.1-1.0sec Variable adjusted by an internal knob

UV-IR Protection

Up to shade DIN16 at all times

Arc Sensors

4

Low TIG amps rated

5amps(DC/AC)

Operating Temperature

-5ºC-+55ºC

Storing temperature

-20ºC-+70ºC

Power Supply

Solar cells +Replaceable 1*CR2032 lithium battery

Power Control

Automatic

Grinding Function

Yes

Low Volume Alarm

Yes

ADF Self Check

Yes

Helmet Material

PP(Fireproofing)

Color option

According to client's requirements





MRGONMIC TOP HEADGEAR BAND

HIGH SOFRGOIMIC AND
COMFORTABLE WEARING

①  Adjust the headgear diameter with the twist knob on the back. The knob is locked until pushed in. Once unlocked, twist clockwise to tighten and counterclockwise to loosen.

②  Adjust the height by snapping the pin into the hole to lock securely in place.
③ To adjust the viewing angle, loosen the knob on both sides of the helmet and change angle locker to the desired tilt position (5 selection and positioned in the middle by default). Once achieving the desire angle, tighten the knobs until snug. The helmet should still swing up, but it should not drift downward when in place for welding.
④  To adjust the distance between the user’s face and ADF, loosen the knobs on both sides of the helmet until the headband can move back and forth freely, reposition the headband at one of the 3 slots as desired (The headband is positioned in the middle by default). This should be done one side at a time and both sides should be located at the same position for proper auto-darkening filter operation.

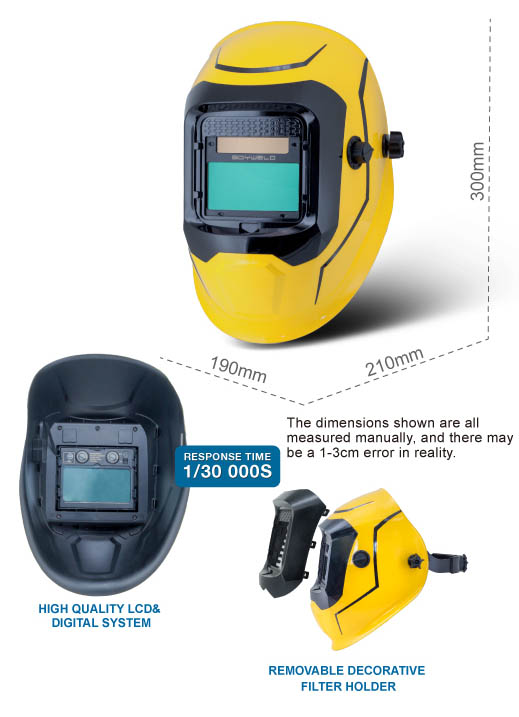

The welding cap shell is made of high impact PP material, the working temperature is 23°F~131°F (-5°C~55°C)

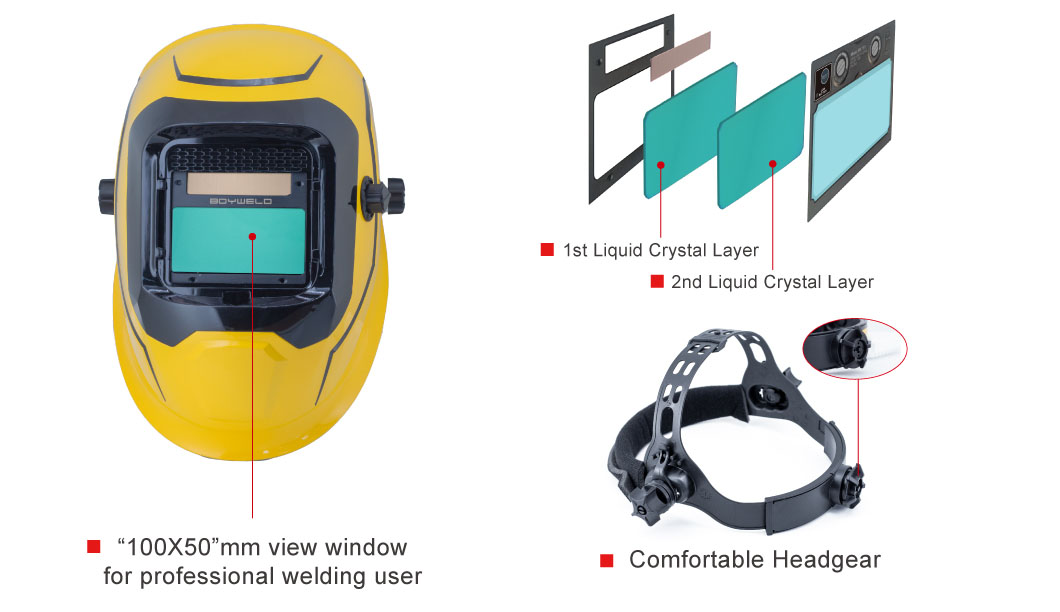

Double Liquid Crystal Layer Solution
For 8+Hours professional Use Eye Protection
​



ADF Explosion Instruction

Full shade range DIN4/5~9/9~13,suitable for welding,grinding,and cutting.
Top Optical Class:1/1/1/1 for the best protection.



PAX Series

Name of helmet : PAX

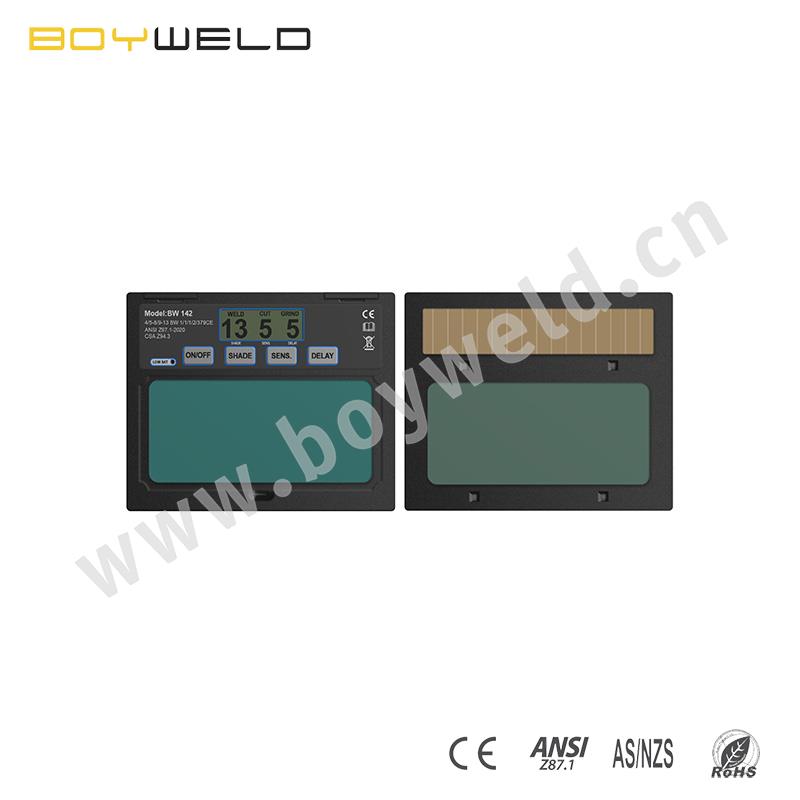

Suggest filter : BW142,BW151
