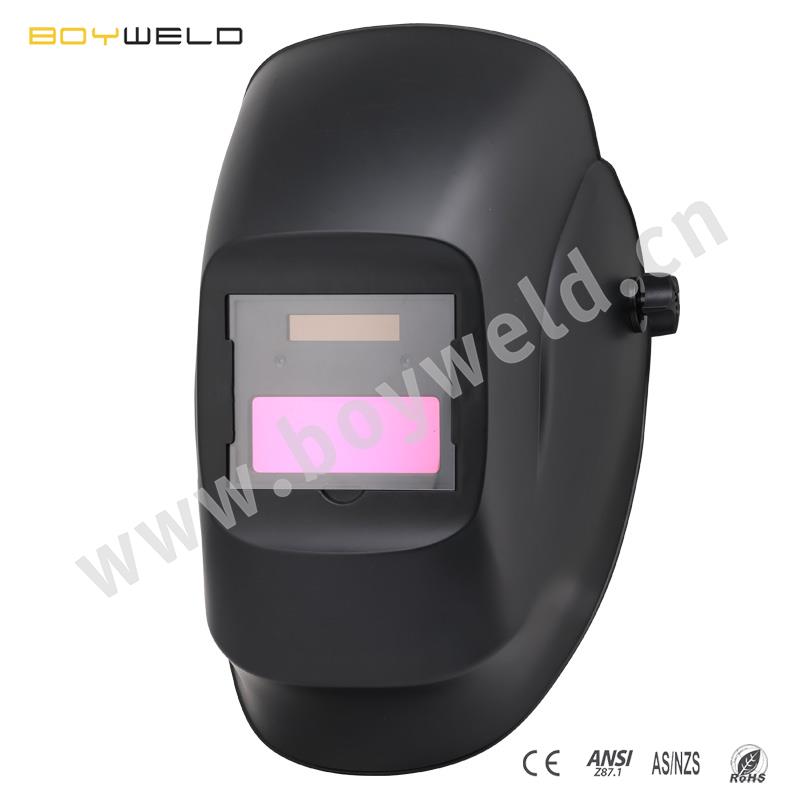

Model |
JAVA-W101 |
|

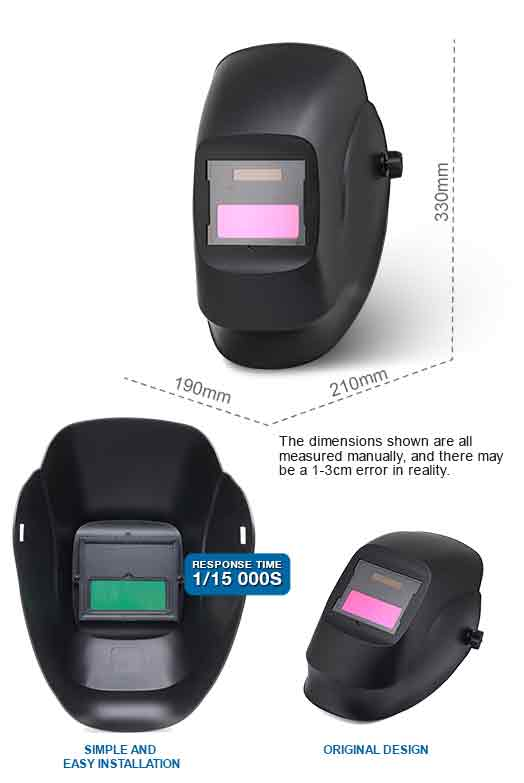

Welding cap size(L x W x H) |
190X210X300 mm |
|

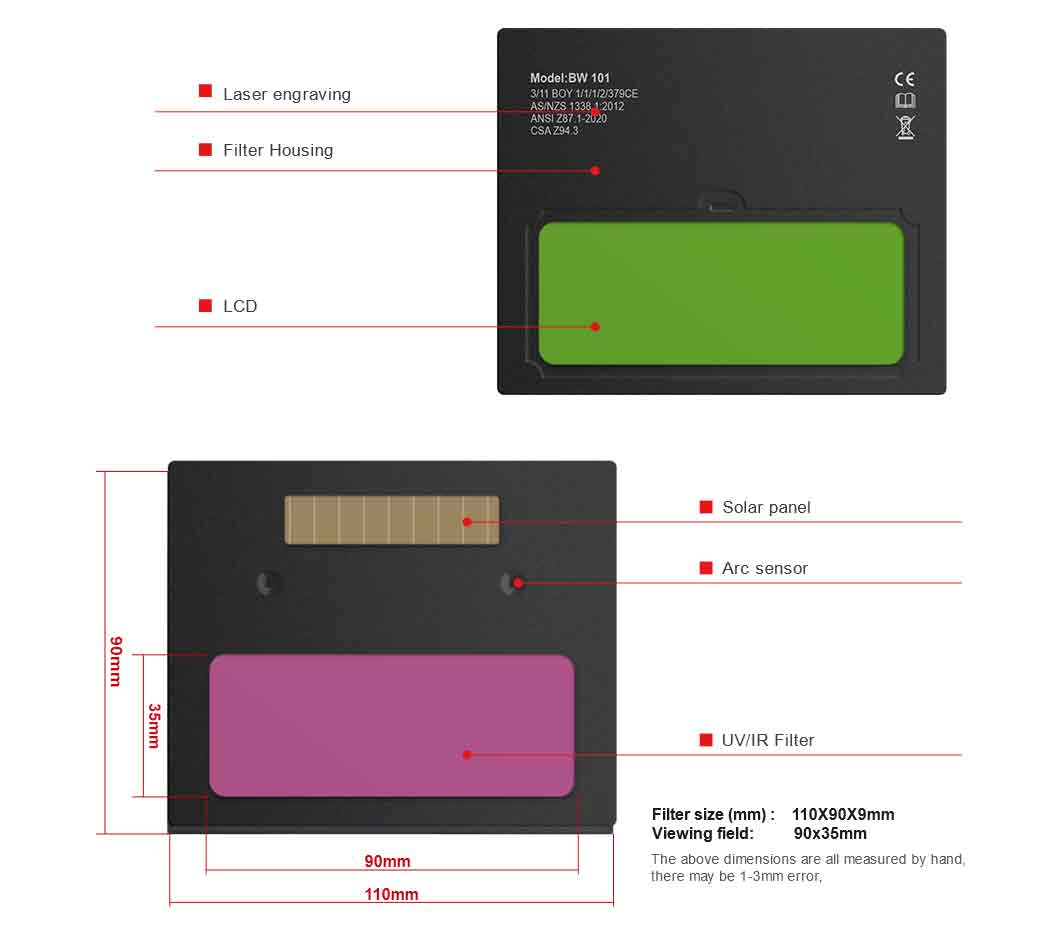

Filter size(L x W x H) |
110X90X9 mm |
|
Viewing field |
90x35mm |
|
Optical Class |
1/1/1/2 |
|
Light states |
DIN 3 |
|
Dark states |
DIN 11 |
|
Sensitivity Control |
Automatic |
|
Switching Time |
Light-dark:1/15,000sec |
|
Delay Time |
Dark-Light:0.25-0.45 Automatic |
|
UV-IR Protection |
Up to shade DIN16 at all times |
|
Arc Sensors |
2 |
|
Low TIG amps rated |
30amps(DC/AC) |
|
Operating Temperature |
-5ºC-+55ºC |
|
Storing temperature |
-20ºC-+70ºC |
|
Power Supply |
Solar cells +Re-chargeable 1*CR2032 lithium battery |
|
Power Control |
Automatic |
|
Grinding Function |
No |
|
Low Volume Alarm |
No |
|
ADF Self Check |
No |
|
Helmet Material |
PP(Fireproofing) |
|

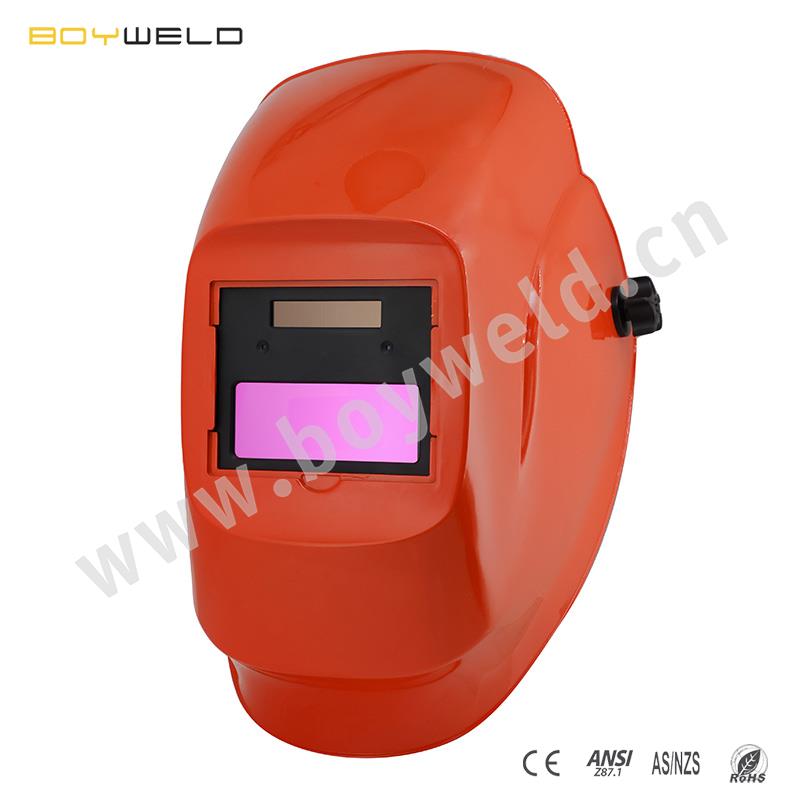

Color option |
According to client's requirements |
|
MRGONMIC TOP HEADGEAR BAND
|
HIGH SOFRGOIMIC AND
COMFORTABLE WEARING
|
|
|

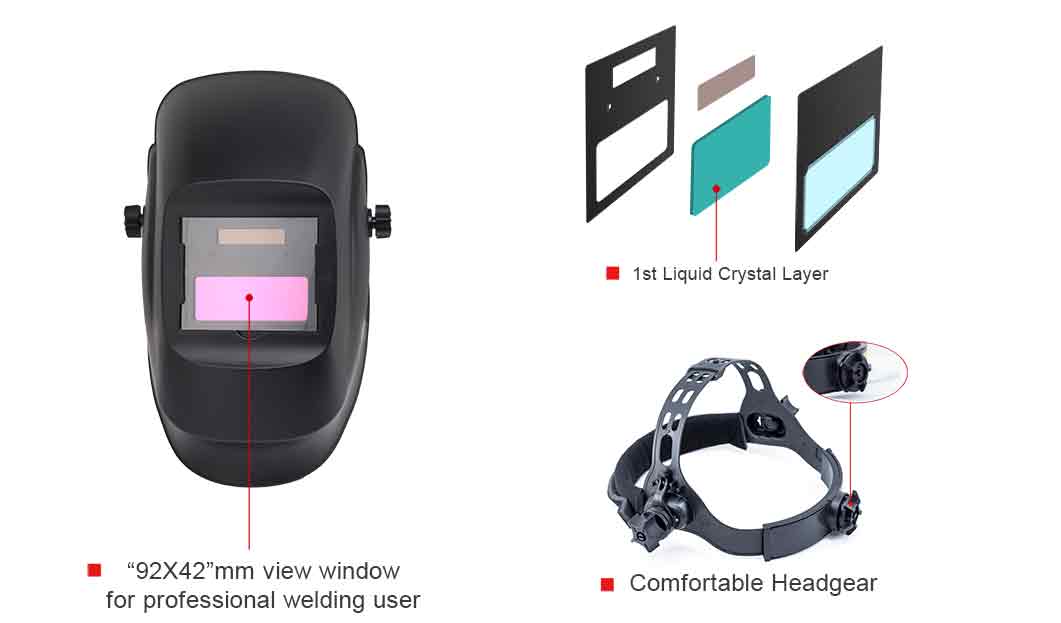

① Adjust the headgear diameter with the twist knob on the back. The knob is locked until pushed in. Once unlocked, twist clockwise to tighten and counterclockwise to loosen. ② Adjust the height by snapping the pin into the hole to lock securely in place.

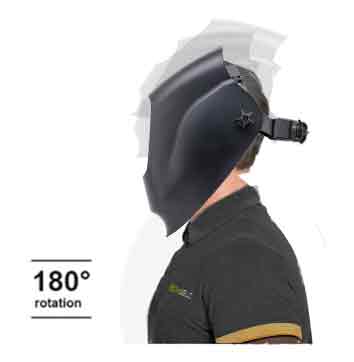

③ To adjust the viewing angle, loosen the knob on both sides of the helmet and change angle locker to the desired tilt position (5 selection and positioned in the middle by default). Once achieving the desire angle, tighten the knobs until snug. The helmet should still swing up, but it should not drift downward when in place for welding. ④ To adjust the distance between the user’s face and ADF, loosen the knobs on both sides of the helmet until the headband can move back and forth freely, reposition the headband at one of the 3 slots as desired (The headband is positioned in the middle by default). This should be done one side at a time and both sides should be located at the same position for proper auto-darkening filter operation.
|
The welding cap shell is made of high impact PP material, the working temperature is 23°F~131°F (-5°C~55°C)
|
ADF Explosion Instruction

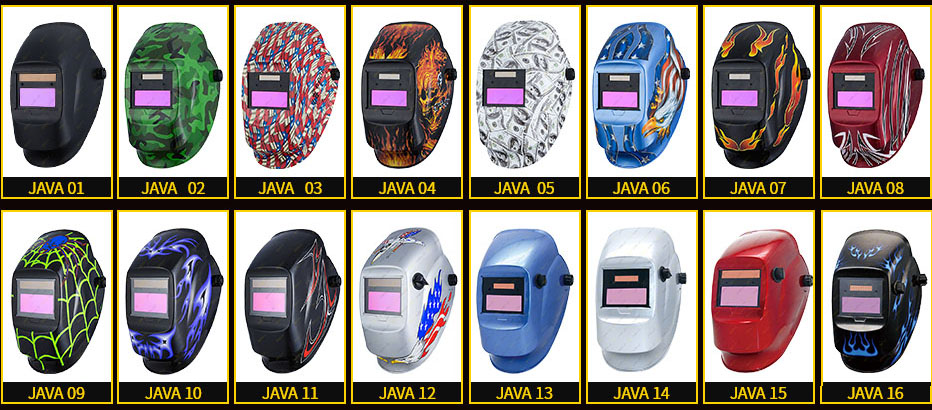

JAVA Series
Style: external tone, internal tone

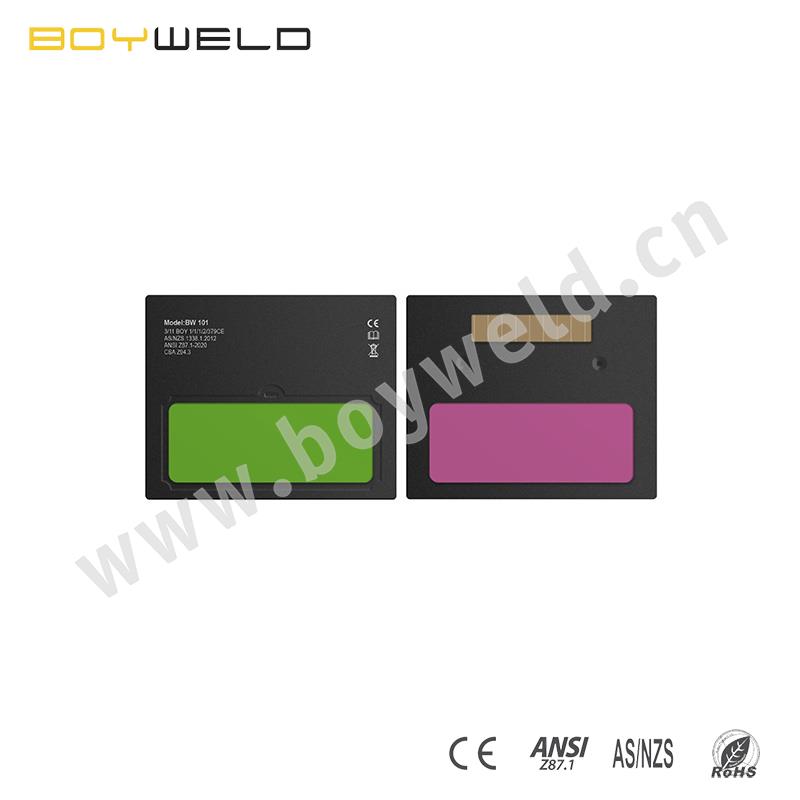

Internal tone:BW101,BW120
External tone:BW123,BW113
